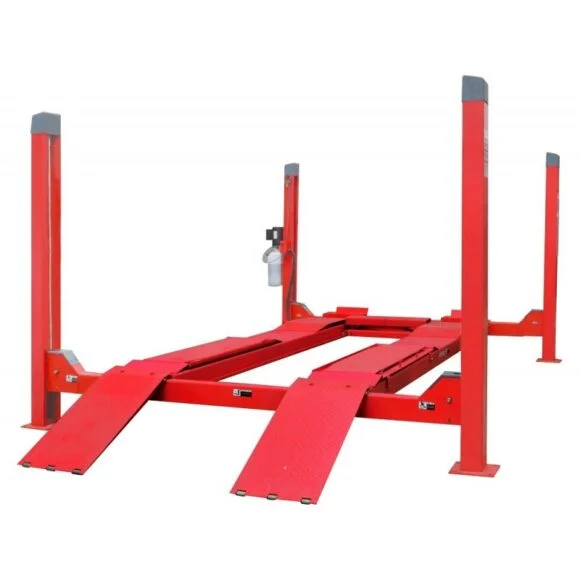

The LAUNCH™ TLT445W
TLT455W guarantees a stable and smooth lifting and lowering.
Two-layer concealed plate structure provides excellent synchronizing performance with the horizontal precision of 1mm.
As the first priority, safety has been considered from design to manufacture. TLT455W is equipped with electric controlled lifting, cable rupture safety system and lowering and cylinder travel limit switch. It is CE certificated.
With rolling jack by a small scissor hydraulic lift and front wheel turn plates, it has better support on wheel alignment.
Features for LAUNCH™ TLT445W Lift
Two-layer concealed plate structure, excellent synchronizing performance with the horizontal precision of 1mm.
Front wheel turn plate’s position is adjustable and rear wheel sliding plate is extended for various vehicle type.
Deployed with rolling jack with small scissor hydraulic lifting and lowering, can be moved back and forth and easy to adjustment tire.
Positioning level’s accuracy is adjustable, distance between platforms is adjustable, wheel base in certain scope is adjustable .
Driven by hydraulic cylinder , full-scope mechanical safety locking by locking latch ,manual lowering.
Cable rupture safety system ,effectively protects vehicle from overturn.
Four connected steel cables force synchronized movement of the lift, effectively prevent vehicles from sloping.
Cylinder travel limit device effectively protects cylinder and extends its lifespan.
Electric controlled lifting and lowering type is optional.
The installation position of turntable and side slip plate can be moved backwards and forwards .
Applicable for vehicles with different wheel base.
CE certificated.

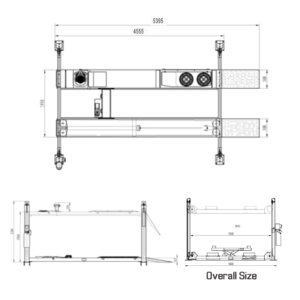

Technical Specifications
Rated Load | 5500kg |
Lifting Height | 1900mm |
Initial Height | 250mm |
Lifting Time | ≤70s |
Lowering Time | ≥20s, ≤40s |
Max. Drive-on Width | 3045mm |
Platform Length | 5600mm |
Platform Width | 550mm |
Overall Width | 3445mm |
Overall Height | 2172mm |
Motor Power | 2.2kW |
Motor Voltage | 3 phase/380v or Single phase/220V |
Secondary lift
Platform Length | 915~1450mm |
Platform Width | 215mm |
Lifting Time | ≤45s |
Rated Load | 2700kg |
Lifting Height | 450mm |
Working Noise | ≤70dB（A） |
Working Oil Pressure | 16MPa |
Working Air Pressure | 0.5~0.7 MPa |
Important Notes:
- Price does not include delivery.
- Installation costs are extra and lift bases must meet minimum spec.
- Customer must prep own floor to spec and supply electricity, single phase.
- If 3-phase power system is required, contact us first before order.
